Kubernetes cross-cluster UI

preview

We're still working on this feature, but we'd love for you to try it out!

This feature is currently provided as part of a preview program pursuant to our pre-release policies.

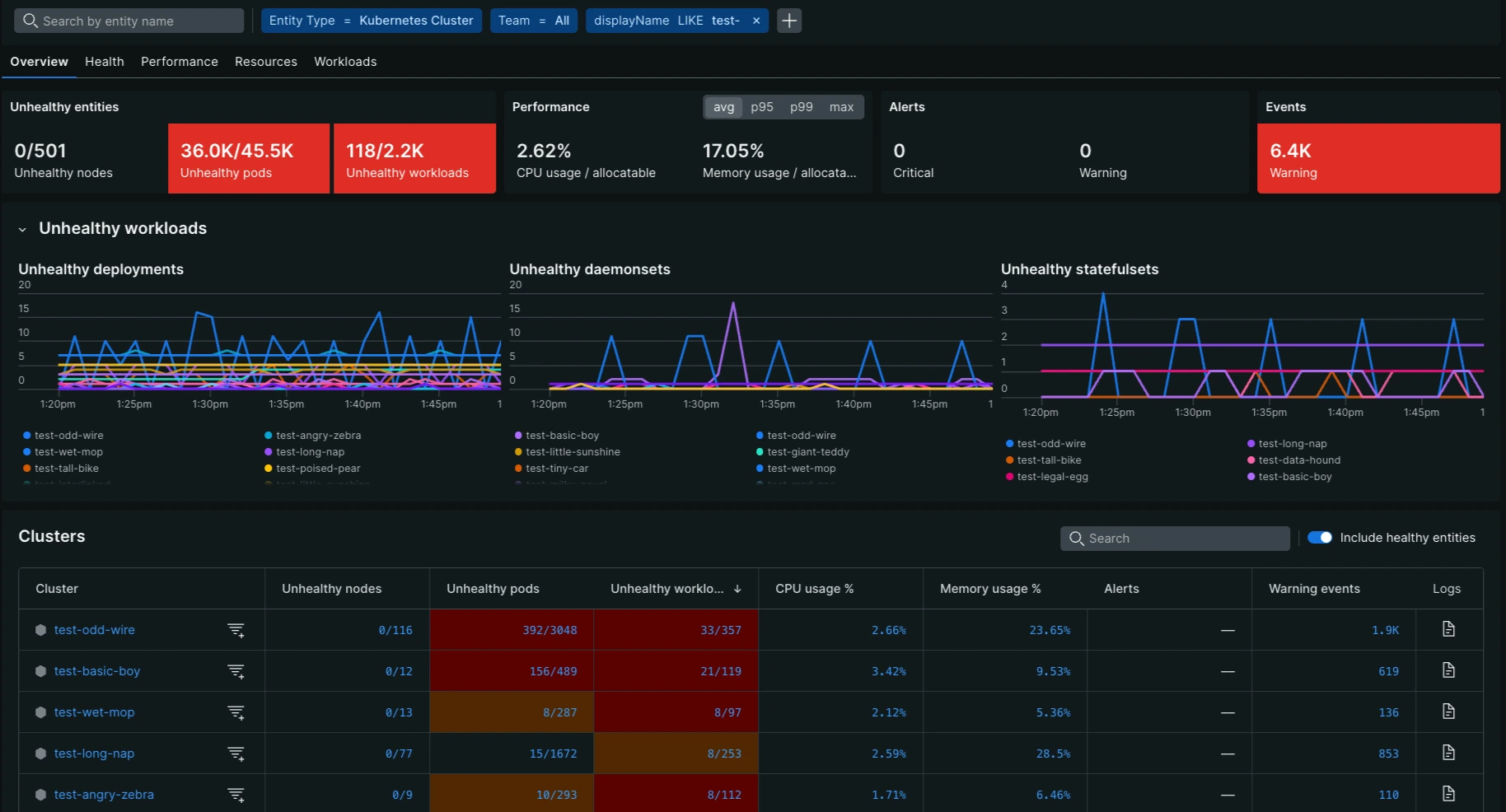

Modern Kubernetes environments have evolved into complex, multi-cluster fleets, but traditional observability tools often provide only a fractured, siloed view of individual clusters. This Kubernetes cross-cluster UI provides a unified command center that transforms this multi-cluster complexity into fleet-wide clarity.

This unified view helps Platform Engineers and SREs to:

Unify fleet-wide observability on a single dashboard that's compatible with clusters monitored by New Relic agents or OpenTelemetry.
Accelerate root cause analysis with a guided triage workflow.
Reduce costs by identifying wasted resources across the entire fleet.
Empower developers with an application-centric view for self-service.

Access the new UI

You can access the new Kubernetes cross-cluster UI from the Kubernetes option in the left navigation in the New Relic platform.

To access the Kubernetes cross-cluster UI:

Go to one.newrelic.com > All capabilities > Kubernetes
Click the Try it out button at the top right corner of the page.

Scorecards and table

Scorecards summarize each metric across your fleet, and the breakdown table categorizes values by cluster, node, or workload. Both scorecards and table rows turn orange (warning) or red (critical) when a value meets a severity threshold. Ratios such as 2/436 change color based on their percentage.

Select avg, p95, p99, or max to update the scorecards and line chart. The breakdown table always displays average values.
Disable Include healthy entities to filter the list to entities with an active orange or red status threshold.
Entities that have stopped reporting remain in the list, displaying historical data for the selected time range.

Drill-down capabilities for triage

You can accelerate root cause analysis with the cross-cluster UI using a guided triage workflow that moves from fleet-wide metrics down to individual entities:

From scorecard to entity ranking: Select a scorecard to sort the table by that metric in descending severity order and plot the top 10 entities in the line chart
From table metric to Kubernetes navigator: Hover the mouse pointer over a metric value to display the entity trend line, then select View in navigator to open the Kubernetes navigator.
From entity to details: Hover over an entity name to see its golden metrics and related entities, or click it to open its overview page.

Tab-specific metrics

The UI is organized into five main tabs. Scorecard: thresholds apply to the scorecards and Table: thresholds apply to table rows. When they're the same, only one set is listed. Counts cover the selected time range.

The Overview tab provides a general summary of the operational health, capacity, and risk across your entire Kubernetes fleet.

Metric name	Description	Importance	Thresholds
`Unhealthy nodes`	Unhealthy nodes out of all nodes. A node is unhealthy if it isn't ready or reports a pressure or network condition.	Signals widespread instability and potential zone failures across the infrastructure.	Orange: 1% to < 5% of nodes; Red: ≥ 5%.
`Unhealthy workloads`	Deployments, daemonsets, and statefulsets with missing or unavailable pods, out of all workloads.	Indicates failure to reconcile desired states across the organization.	Orange: 1% to < 5% of workloads; Red: ≥ 5%.
`Running pods`	Percentage of pods in the `Running` phase, excluding job pods and completed pods.	Operational success rate; less than 90% running pods indicates widespread failure.	`Scorecard:` Orange: 90% to < 95%; Red: < 90%. `Table:` Orange: > 95% to 99%; Red: ≤ 95%.
`CPU usage`	Node CPU usage as a percentage of allocatable CPU.	Measures aggregate node saturation risk across the entire estate.	Orange: 75% to < 95%; Red: ≥ 95%.
`Memory usage`	Node memory usage as a percentage of allocatable memory.	High values indicate risk of aggregate eviction storms across clusters.	Orange: 75% to < 95%; Red: ≥ 95%.
`Ephemeral storage`	Percentage of node filesystem capacity used.	Critical to prevent Kubelet crashes.	Orange: 75% to < 95%; Red: ≥ 95%.
`Persistent storage`	Percentage of pod volume capacity used.	Critical to prevent stateful application crashes and data write failures.	Orange: 75% to < 95%; Red: ≥ 95%.
`Warning events`	Number of Kubernetes `Warning` events.	High noise levels obscure critical alerts and indicate config debt.	Orange: 1 to 49; Red: ≥ 50.

The Health tab focuses on metrics related to the availability and current status of your nodes and pods to detect immediate failure risks.

Metric name	Description	Importance	Thresholds
`Nodes ready`	Nodes that reported no unhealthy condition, out of all nodes.	Availability metric; values below 95% signal severe fleet instability.	`Scorecard:` Orange: 95% to < 100%; Red: < 95%. `Table:` Cluster rows: Orange: > 1% to 2% of nodes ready; Red: ≤ 1%. Node rows: Red: `FALSE`.
`Node memory pressure`	Number of nodes reporting `MemoryPressure`.	Predicts widespread eviction storms.	`Scorecard:` Orange: 1% to < 6% of nodes; Red: ≥ 6%. `Table:` Cluster rows: Orange: 98 nodes; Red: ≥ 99 nodes. Node rows: Red: `TRUE`.
`Node disk pressure`	Number of nodes reporting `DiskPressure`.	Risk of widespread node failures due to disk exhaustion.	`Scorecard:` Orange: 1% to < 6% of nodes; Red: ≥ 6%. `Table:` Cluster rows: Orange: 98 nodes; Red: ≥ 99 nodes. Node rows: Red: `TRUE`.
`Running pods`	Percentage of pods in the `Running` phase, excluding job pods and completed pods.	Operational success rate; less than 90% running pods indicates widespread failure.	`Scorecard:` Orange: 90% to < 95%; Red: < 90%. `Table:` Orange: > 95% to 99%; Red: ≤ 95%.
`Pending pods`	Number of pods in the `Pending` phase, excluding job pods.	Indicates scheduler failure or capacity starvation.	`Scorecard:` Orange: 1 to 5; Red: ≥ 6. `Table:` Orange: 1; Red: ≥ 2.
`Container restarts`	Number of container restarts.	Symptom of CrashLoopBackOff or OOMKills.	`Scorecard:` Orange: 1 to 5; Red: ≥ 6. `Table:` Orange: 1; Red: ≥ 2.
`Network errors (per second)`	Rate of network errors per second.	Symptom of hardware failure or systemic CNI issues.	`Scorecard:` Orange: 11 to < 50 per 100 nodes; Red: ≥ 50 per 100 nodes. `Table:` Orange: 5 to 10; Red: ≥ 11.
`Warning events`	Number of Kubernetes `Warning` events.	High noise levels obscure critical alerts and indicate config debt.	Orange: 1 to 49; Red: ≥ 50.

The Performance tab measures utilization against total capacity and limits to identify node saturation and risk of performance degradation.

Metric name	Description	Importance	Thresholds
`CPU usage (total)`	Node CPU usage as a percentage of allocatable CPU.	Measures saturation risk across the entire estate.	Orange: 75% to < 95%; Red: ≥ 95%.
`CPU usage (limits)`	CPU usage as a percentage of CPU limits, where set.	Measures proximity to throttling.	Orange: 75% to < 95%; Red: ≥ 95%.
`Memory usage (total)`	Node memory usage as a percentage of allocatable memory.	Proximity to eviction thresholds.	Orange: 75% to < 95%; Red: ≥ 95%.
`Memory usage (limits)`	Memory working set as a percentage of memory limits, where set.	Proximity to OOMKill events.	Orange: 75% to < 95%; Red: ≥ 95%.
`Ephemeral storage`	Percentage of node filesystem capacity used.	Critical to prevent Kubelet crashes.	Orange: 75% to < 95%; Red: ≥ 95%.
`Pod capacity`	Running pods as a percentage of the maximum pods that nodes can run.	Measures resource density and slot exhaustion.	Orange: 85% to < 100%; Red: ≥ 100%.
`Warning events`	Number of Kubernetes `Warning` events.	High noise levels obscure critical alerts and indicate config debt.	Orange: 1 to 49; Red: ≥ 50.

The Resources tab analyzes Request vs. Usage and Request vs. Limits to assess resource allocation efficiency and identify waste or sizing inaccuracies.

Metric name	Description	Importance	Thresholds
`CPU usage vs requests`	CPU usage as a percentage of CPU requests.	Governance metric for sizing accuracy and waste.	`Scorecard:` Orange: < 70% or ≥ 200%. `Table:` Orange: < 70% or > 200%.
`CPU requests vs limits`	CPU requests as a percentage of CPU limits.	Measures performance headroom and burst capacity.	Orange: 75% to < 95%; Red: ≥ 95%.
`CPU throttling`	Percentage of CPU periods in which containers were throttled.	Measures latency/lag caused by CFS quotas.	Orange: 10% to < 50%; Red: ≥ 50%.
`Memory usage vs requests`	Memory usage as a percentage of memory requests.	Governance metric for memory sizing accuracy.	`Scorecard:` Orange: < 70% or ≥ 200%. `Table:` Orange: < 70% or > 200%.
`Memory requests vs limits`	Memory requests as a percentage of memory limits.	Helps to assess resource allocation efficiency and potential overprovisioning.	Orange: 75% to < 95%; Red: ≥ 95%.
`Pod evictions`	Number of pods evicted by the kubelet.	Symptom of node resource starvation.	`Scorecard:` Orange: 1 to 5; Red: ≥ 6. `Table:` Orange: 1; Red: ≥ 2.
`Warning events`	Number of Kubernetes `Warning` events.	High noise levels obscure critical alerts and indicate config debt.	Orange: 1 to 49; Red: ≥ 50.

The Workloads tab provides an application-centric view of your deployments, daemonsets, and statefulsets, focusing on metrics such as readiness, restarts, and missing replicas to diagnose application instability and poor QoS.

Metric name	Description	Importance	Thresholds
`CPU usage (requests)`	CPU usage as a percentage of CPU requests.	Measures how close the workload is to exceeding its requested CPU.	Orange: 75% to < 95%; Red: ≥ 95%.
`CPU throttling`	Percentage of CPU periods in which containers were throttled.	Measures latency/lag caused by CFS quotas.	Orange: 10% to < 50%; Red: ≥ 50%.
`Memory usage (limits)`	Memory working set as a percentage of memory limits, where set.	Proximity to OOMKill.	Orange: 75% to < 95%; Red: ≥ 95%.
`Pods ready/total`	Ready pods out of all pods.	Shows whether all of the workload's pods are available.	`Scorecard:` Orange: < 100%. `Table:` Orange: ≤ 99%.
`Pods unavailable`	Desired replicas that aren't available.	Indicates service availability.	`Scorecard:` Orange: 1 to 5; Red: ≥ 6. `Table:` Orange: 1; Red: ≥ 2.
`Pods missing`	Gap between desired and ready replicas.	Indicates service degradation.	`Scorecard:` Orange: 1 to 5; Red: ≥ 6. `Table:` Orange: 1; Red: ≥ 2.
`Pod evictions`	Number of pods evicted.	Workload is causing node pressure or is misconfigured.	`Scorecard:` Orange: 1 to 5; Red: ≥ 6. `Table:` Orange: 1; Red: ≥ 2.
`Container restarts`	Number of container restarts.	Persistent failure state (CrashLoopBackOff).	`Scorecard:` Orange: 1 to 5; Red: ≥ 6. `Table:` Orange: 1; Red: ≥ 2.
`Container image restarts`	Number of distinct container images with restarts.	Shows whether restarts are isolated to one image or spread across several.	`Scorecard:` Orange: 1 to 2; Red: ≥ 3. `Table:` Orange: 1; Red: ≥ 2.
`Warning events`	Number of Kubernetes `Warning` events.	High noise levels obscure critical alerts and indicate config debt.	Orange: 1 to 49; Red: ≥ 50.
